High reliability tray plug in type mounted easy to insert and pull out 8 16 1x6 fiber optical plc splitter

Place of Origin : Hubei, China

Brand Name : OEM

Model Number : fiber optical plc splitter

Product name : fiber optical plc splitter

Application : FTTH FTTB FTTX Network

Type : 1*2/1*4/1*8/1*16/1*32/1*64

Color : White

Certification : ISO9001:2008

Wavelength : 1260-1650nm

Fiber Type : G652D/G657A

Material : PVC ABS

Connector Type : SC FC ST LC UPC

Operating temperature : 40~+85

Supply Ability : 30000 Piece/Pieces per Month fiber optical plc splitter

Packaging Details : One pair per polybag,or as required package

Port : shenzhen port shanghai port

MOQ : 1 Piece/Pieces

Price : $1.31 - $28.30 / Pieces

Contact Now

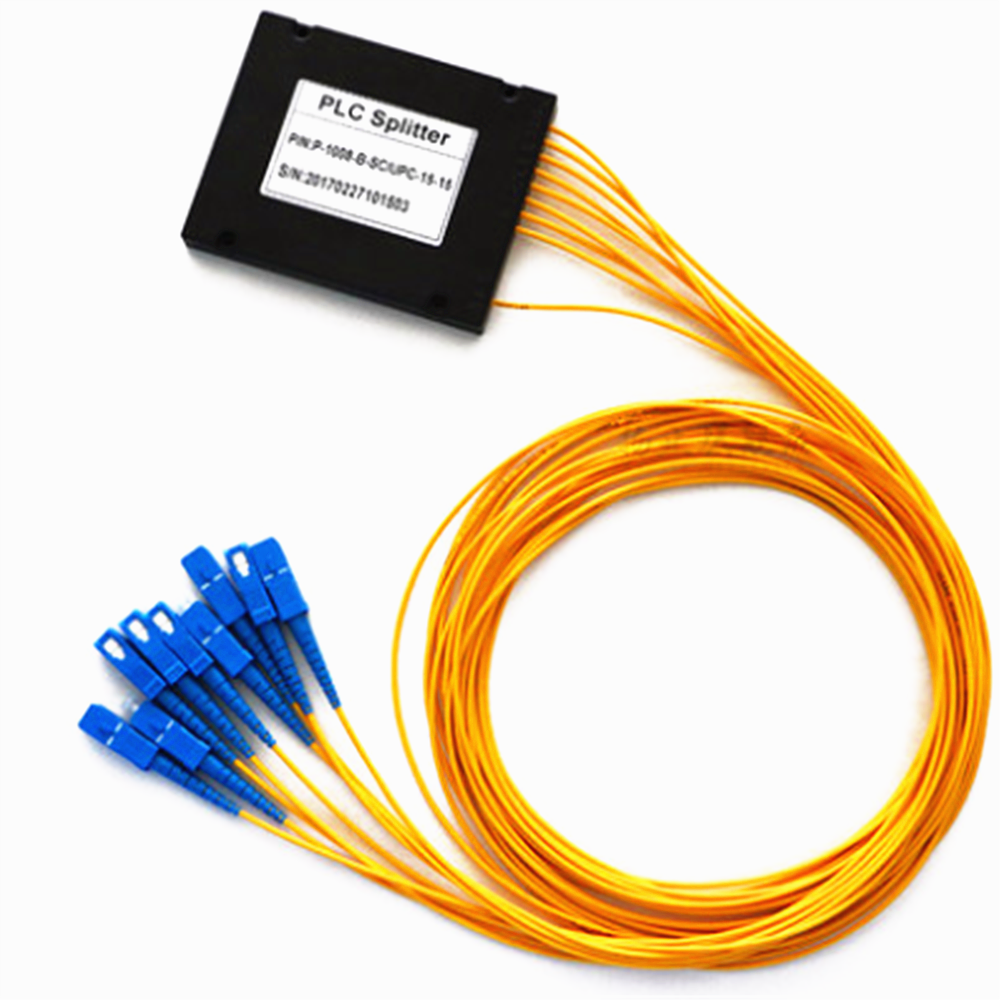

Product display
Product display

Product Features:

  • Good uniformity and low insertion loss
  • Low Polarization Dependent Loss
  • Excellent Environmental Stability
  • Excellent Mechanical
  • Stability Telcordia GR-1221 and GR-1209

Application:

  • Fiber to The Home (FTTH)
  • Passive optical networks (PON)
  • Local Area Networks (LAN)
  • Cable Television (CATV)
  • Test Equipment

Specification:

ParameterSpecification
Operating Wavelength (nm)1260 ~ 1650
Type

1x2

1x41x81x161x321x642x42x82x16
Insertion Loss (dB) Max. ≤4.2≤7.5≤10.6≤13.7≤17.2≤21≤7.8≤10.8≤13.9
Uniformity (dB) Max≤0.6≤0.8≤1.0≤1.5≤2.0≤2.5≤1.0≤1.5≤2.0
PDL(dB)Max<0.2 <0.2<0.2 <0.3 <0.3<0.4 <0.3<0.3<0.4
Directivity (dB) Min 55
Return Loss (dB) Min55(50)
Operating Temperature (°C) -45~ +85
Storage Temperature (°C) -5~ +75
Fiber length 1m or custom length
Fiber Type Corning G656A1 or Fiberhome G657A1
Connector TypeCustom specified

Power Handling (mW)

300
High reliability tray plug in type mounted easy to insert and pull out 8 16 1x6 fiber optical plc splitterHigh reliability tray plug in type mounted easy to insert and pull out 8 16 1x6 fiber optical plc splitterHigh reliability tray plug in type mounted easy to insert and pull out 8 16 1x6 fiber optical plc splitter
Related Product

High reliability tray plug in type mounted easy to insert and pull out 8 16 1x6 fiber optical plc splitter

Company Information

High reliability tray plug in type mounted easy to insert and pull out 8 16 1x6 fiber optical plc splitter

Exhibition

High reliability tray plug in type mounted easy to insert and pull out 8 16 1x6 fiber optical plc splitter

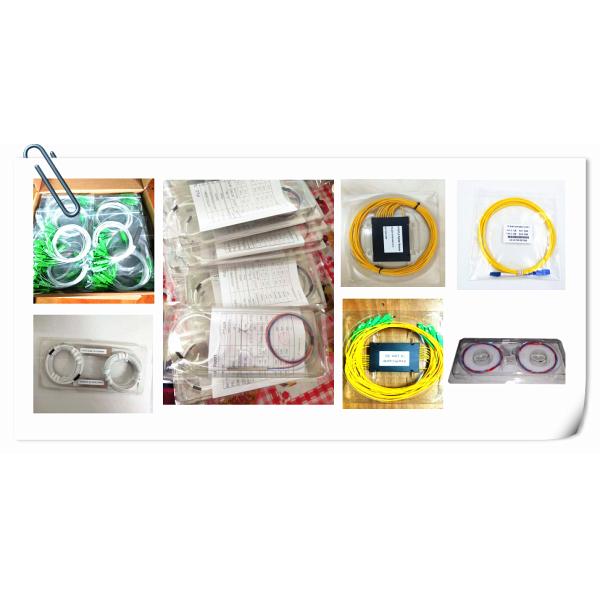

Packaging & Shipping

High reliability tray plug in type mounted easy to insert and pull out 8 16 1x6 fiber optical plc splitterHigh reliability tray plug in type mounted easy to insert and pull out 8 16 1x6 fiber optical plc splitter

FAQ

Q1: How the warranty for products ?
A: 10 years,and maintance for whole life

Q2: Can we make OEM for products?
A: Yes, we can print your logo or label on the products or on the box.

Q3: Can you provide free samples ?
A: Some of low value samples can be free for you, but you need pay for the shipping cost.

Q4: How can you guarentee the quality ?
A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.

Q5: What is your delivery time ?
A: Generally, sample: 3~5 working days. formal order: 7-10 working days.

Q6: What's your payment terms ?
A: We accept T/T, Western Union, Money Gram, Paypal.
For samples: 100% payment. Formal order: 30% as deposit, 70% balance payment before shipment
